sealers - additional information

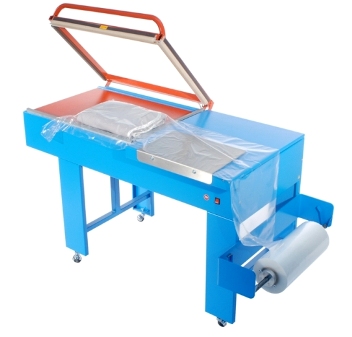

ANG 60 X 80
L sealer
ang

L-sealers allow you to pack any item into V-folded film in rolls. The item is placed between the edges of the film and sealed all around in a single instant operation.

The system is particularly suitable for clothes that are not easily inserted into bags and for products of varying size and shape.

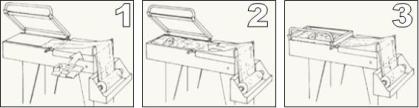

The edges of the film are separated by a flat device on the machine. This enables the operator to insert the item between the two layers of film and forward it under the sealing frame. The table under the sealing frame can be moved down to -10 cm to make the positioning easier.

The seal is immediate as it requires just the time of  lowering and raising the frame  by hand.

The sealing resistance is always hot and requires no regulation. A teflon protection on the resistance eliminates all fumes.

  max dimension of package

  60x80 cm - 25 cm high
  type of seal   hot wire

  materials

  polyethylene and PVC standard or shrinkable
  max thickness 100 microns

  dimensions   175x90x110 cm
  weight   80 kg

  voltage

  230 V

  consumption

  300 W/hour
Cibra reserves the right to modify all models without warning.
